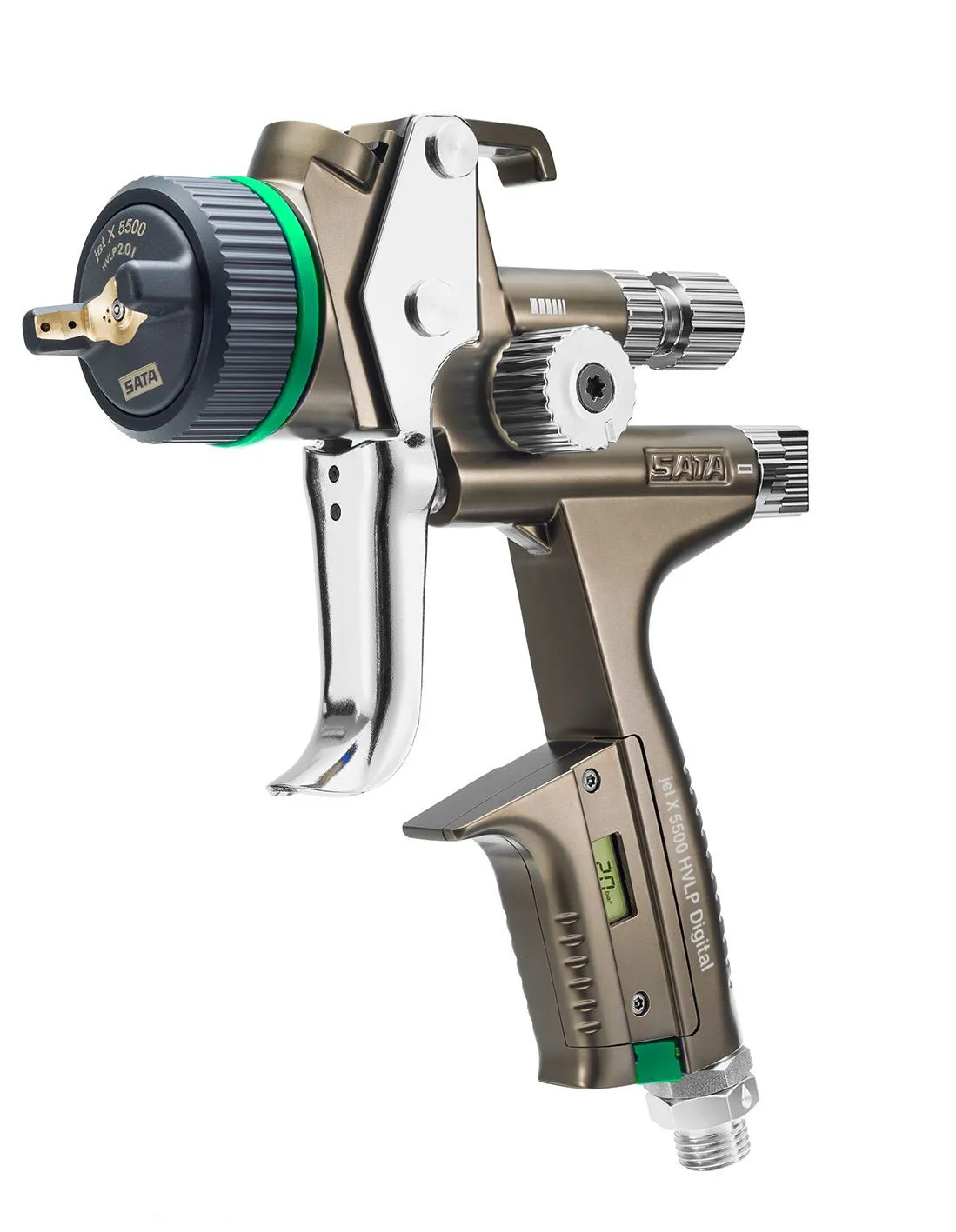

New SATAjet X 5500 HVLP 1.2 DIGITAL Bar

$500.00

Category:

Description

Additional information

The concept of this nozzle system is easy and straightforward to understand: Both proven application technologies – HVLP and RP – remain available, but now each of them offer the additional choice between “I” and “O”- nozzle sets. In line with the increasing nozzle sizes within each of the respective technology (HVLP / RP), the material flow rate increases too with constant increments, which means that the spray fan size and width remain unchanged across the entire nozzle spectrum. In essence, end-users can now rely on a transparent and consistent system which offers them clear and well-structured application options.

  • Revolutionary: The X-nozzles are taking atomization to a whole new level.
  • Noticeably quieter: Whispering nozzle™ due to optimized air flow geometry, reduced noise level in the relevant sound frequency ranges.
  • Individual: Matches each application requirement, such as specific characteristics of the paint system, climatic conditions and application method (application speed/application control).
  • Precise: Optimized material distribution for enhanced spraying uniformity and atomization with both spray fan shapes.
  • Low maintenance: No air distribution insert required, thus also ensuring a much easier and faster cleaning process.
  • Consistent: Constant fan size across the entire nozzle spectrum (within the range of each respective atomization technology) with linear increases of the material flow rate.
  • Efficient: The optimized atomization concept enables to realize considerable material savings using the same application method as before.

Specification:

  • Nozzle size 1.2 mm
  • Cup Size: 0.6 – 0.9 L
  • Cup Material: PVC
  • Fan shape I-nozzle HVLP/RP
  • Fan shape O-nozzle HVLP/RP

Technical data:

  • Inlet pressure 1.5-2 bar [21.8-29psi]
  • Air consumption 290 Nl/min – 245 Nl/min [7.1 cfm]
  • Spray distance 180-230 mm [7-9 inches].Nozzle size can be increased to 2.5 mm.
