New RCF HDL 20-A active line array speaker

$500.00

BUY 2 GET 1 FREE

Category:

Description

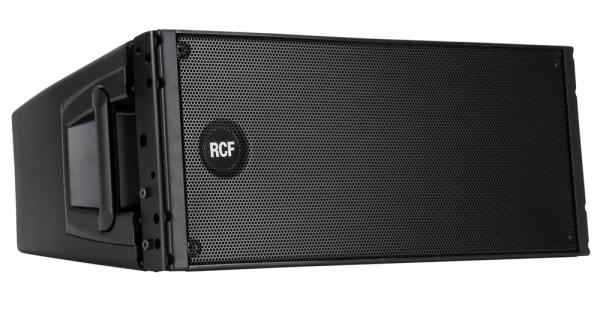

The RCF HDL 20-A is an active line array module loudspeaker with a carefully designed composite cabinet, 2 x 10″ woofers and a 3″ titanium compresion driver for excellent intelligibility over distance.

The built in digital amplifier supplies 700 watts RMS output power: split into 200 watts for the High Frequency and 500 watts for low frequency.

The built in Class-D amp keeps the weight to a minimum and features a solid machined aluminium structure for stability during transport and fan free heat dissipation.

The RCF HDL20A active line array speaker is ideal for live sound reinforcement & installed sound systems in llive music venues as well as theatre sound systems and clubs.

  • 100 x 15, Wide dispersion constant directivity angle line array module
  • 1400 Watt Peak power – 700 Watt RMS
  • 135 dB max SPL
  • 55 Hz 20 kHz frequency response
  • 2 x 10″ Woofers
  • 1 x 3″ Compression Driver
  • DSP controlled Input section with selectable presets
  • Tour grade safe and solid variable mechanics
  • Composite PP enclosure structurally wooden reinforced
  • Warranty: 3 Years

SPECIFICATIONS

Frequency Response (-10dB) 55Hz – 20kHz
Max SPL @ 1m 135dB
Horizontal Coverage Angle 100°
Vertical Coverage Angle 15°
Transducers Compression Driver: 2.0”, 3.0” voice coil
Woofer: 2 x 10”, 2.5” voice coil
Input Signal Balanced / Unbalanced
Input / Output Connectors XLR
Input Sensitivity -2dBu/ +4dBu
Crossover Frequencies 800Hz
Protection Thermal, RMS
Limiter Soft Limiter
Controls Cluster, HF, High Curving, Indoor
Total Power 1400W Peak, 700W RMS
High Frequency Power 400W Peak, 200 W Peak
Low Frequency Power 1000W Peak, 500W RMS
Cooling Convection
Construction PP Cabinet, Steel Grille
Colour Black
Height x Width x Depth 294mm x 705mm x 445mm
11.57” x 27.76” x 17.52”
Weight 30.2kg / 66.58lbs
