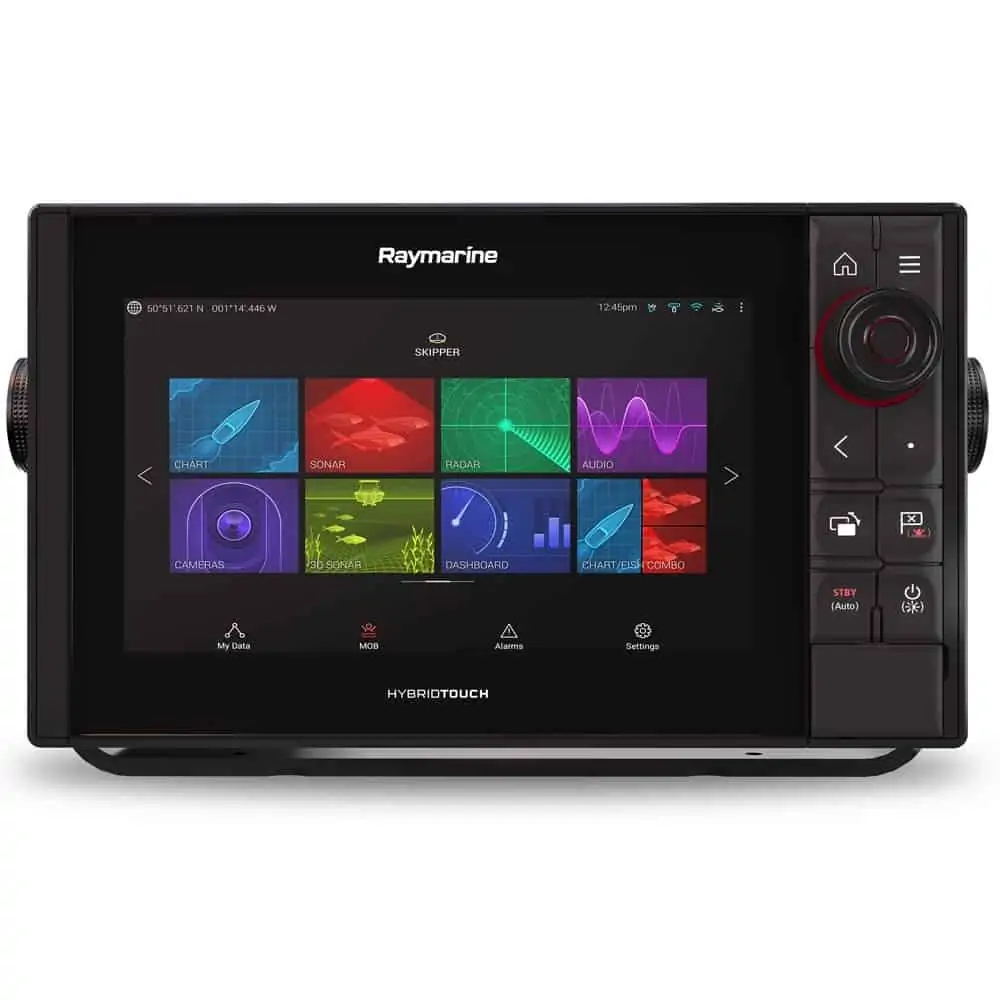

New RAYMARINE Axiom Pro 9 S Multifunction Display

Raymarine Axiom Pro 9 S is the new standard for “all-in-one” display. And with a blazing fast quad core processor, a super bright IPS touchscreen display, and the smart LightHouse OS, Axiom Pro delivers a fluid and intuitive navigation experience.

Available in two models with the only difference being the type of sonar. The Axiom Pro S gives a single channel CHIRP sonar whilst the Axiom Pro RVX gives RealVision™ 3D Sonar aswell as a 1KW CHIRP sonar. (transducers sold separately).

Features:

• Your choice of simple tablet like touch screen interaction or confident keypad control in rough seas.
• Get instant access to your favorite function with Axiom Pro’s user-programmable Custom Key.
• Fast, fluid and easy to learn. The Lighthouse 3 interface is uncluttered and easy to personalize for your style of boating.
• Axiom Pro’s quad core processor delivers instantaneous response and the ability to run multiple apps simultaneously without any slowdowns.
• Axiom comes with a built-in 72 channel GPS/GLONASS receiver with fast update. Use the optional GA150 antenna accessory to boost GPS reception onboard vessels with enclosed pilothouses or metal construction where the MFD does not have a clear view of the sky.
• Optical Bonding Technology & IPS Displays Raymarine optical bonding technology and IPS display panels give you stunning color, clarity and contrast in all lighting conditions. Plus, Axiom Pro looks great even through polarized sunglasses.
• Keep an eye on everything onboard from the helm. Axiom Pro supports both video over IP and analog cameras and entertainment sources.
• Axiom Pro works with Raymarine’s full lineup of Quantum CHIRP, HD Color and Super HD Color radar scanners. Enjoy all weather, day or night navigation, collision avoidance and bird finding tools.
• Axiom is ready-to network with all the latest electronics using standard NMEA2000 and NMEA0183 connectivity.

Specifications

• Display Size – 9″ IPS Optically Bonded LCD
• Display Resolution – 1280 x 720 WXGA
• Display Type – Multitouch
• Brightness – 1,200 nits
• Viewing Angle – Degrees: 88 / 88 / 88 / 88 (Top / Bottom / Left / Right)
• Dimensions – 11.9″ x 6.85″ x 2.56″ (300 x 174 x 65 mm)
• Weight – 3.35 lbs (1.52 kg)
• Mounting – Top, Front, Bracket
• Waterproof Rating – IPX6 / IPX7
• Operating Temp – minus 13deg F to 131deg F (-25deg C to +55deg C)
• Storage Temp – minus 22deg F to 158deg F (-30deg C to +70deg C)
• Voltage – 12V and 24V DC (8 V to 32 DC)
• Power Consumption (Full brightness) – Axiom Pro 9: ~20W
• Ethernet – 2 x 10/100 Mbit/s Network (RayNet)
• NMEA0183 – 1 Transmit / 2 Receive
• NMEA2000 – 1 x NMEA2000 port (DeviceNet microC)
• SeaTalkNG – Requires DEVICENET FEMALE (F) ADAPTOR CABLE (A06075 1m adaptor included in box)
• USB – 1 x USB microAB (rear – charging, external storage device or RCR-SD/USB Accessory (A80440)
• Wi-Fi – WiFi – 802.11 a / b / g / n
• BlueTooth – Bluetooth 4.0 + Low Energy + Power Class 1.5 [Available in future Lighthouse 3 software update]
