Description
FEATURES
- DXT – Deep and eXact cutting Technology, allows a larger cutting capacity due to the innovative direct drive gearbox
- Motor head slides on fixed pipes without extending machine at rear end, so the machine can be placed close to wall
- Front knob for easy bevel adjustment
- Dual dust collection ports provide excellent dust extraction performance
- Linear ball bearing system engineered to deliver “dead-on” accurate cuts
- Powerful 15.0 amp direct drive motor requires less maintenance
- Large-sized aluminium base improves stability of material for efficient cutting
- Positive mitre stops at: 0°, 15°, 22.5°, 31.6°, 45°, and 60° left or right
- Built-in laser clearly indicates line-of-cut whether blade is turning or not
- On-off switch and micro-adjustments for precise “left-of-blade” or “right-of-blade” cutting
- Ergonomic rubberised horizontal D-handle design for better fit and added comfort
- Replaceable stainless steel mitre scale features large and easy-to-read markings
- See-through blade guard system for greater visibility of blade and line of cut
- Easy blade changes for increased efficiency
- Easy one-touch slide lock for convenience
- Holders to support a wide work piece
- Connects to dust extractor
- Electric brake
- Soft start
- Double insulation
SPECIFICATION
- Input Wattage:
- 110v: 1450 w
- 240v: 1800 w
- Size LxWxH: 898x580x530
- Blade Diameter: 305 mm
- Bore Diameter: 30 mm
- No Load Speed: 3200 rpm
- Max Mitre Range (L-R): 60°-60°
- Max Bevel Range(L-R): 48°-48°
- Power Supply Cord Length: 2.5 m
- Weight: 29.5 kg
CUTTING CAPABILITIES (H x W)
Mitre Angle | Bevel Angle | ||
45° (left) | 0° | 45° (right) | |
0° | 61 mm x 382 mm | 92 mm x 382 mm | 44 mm x 382 mm |
45° | 61 mm x 268 mm | 92 mm x 268 mm | 44 mm x 268 mm |
60° (right) | – | 92 mm x 185 mm | – |
NOISE & VIBRATION
- Noise Sound Pressure: 91 dB(A)
- Noise Sound Power: 100 dB(A)
- Noise K Factor: 3 dB(A)
- Vibration: 2.5 m/sec²
- Vibration K Factor: 1.5 m/sec²

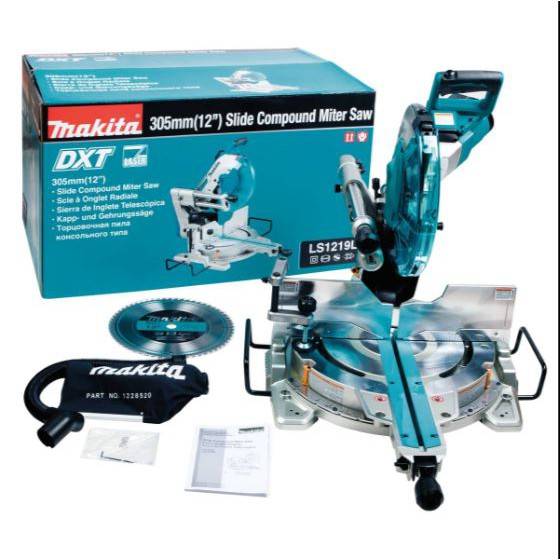

WHAT’S IN THE BOX
- 1x LS1219L 305mm Compound Mitre Saw
- 1x TCT Saw Blade 305mm x 25.4 x 60T
- 1x Vertical Vise
- 1x Dust Bag
- 1x Triangular Rule
- 1x Hex Wrench
