Description

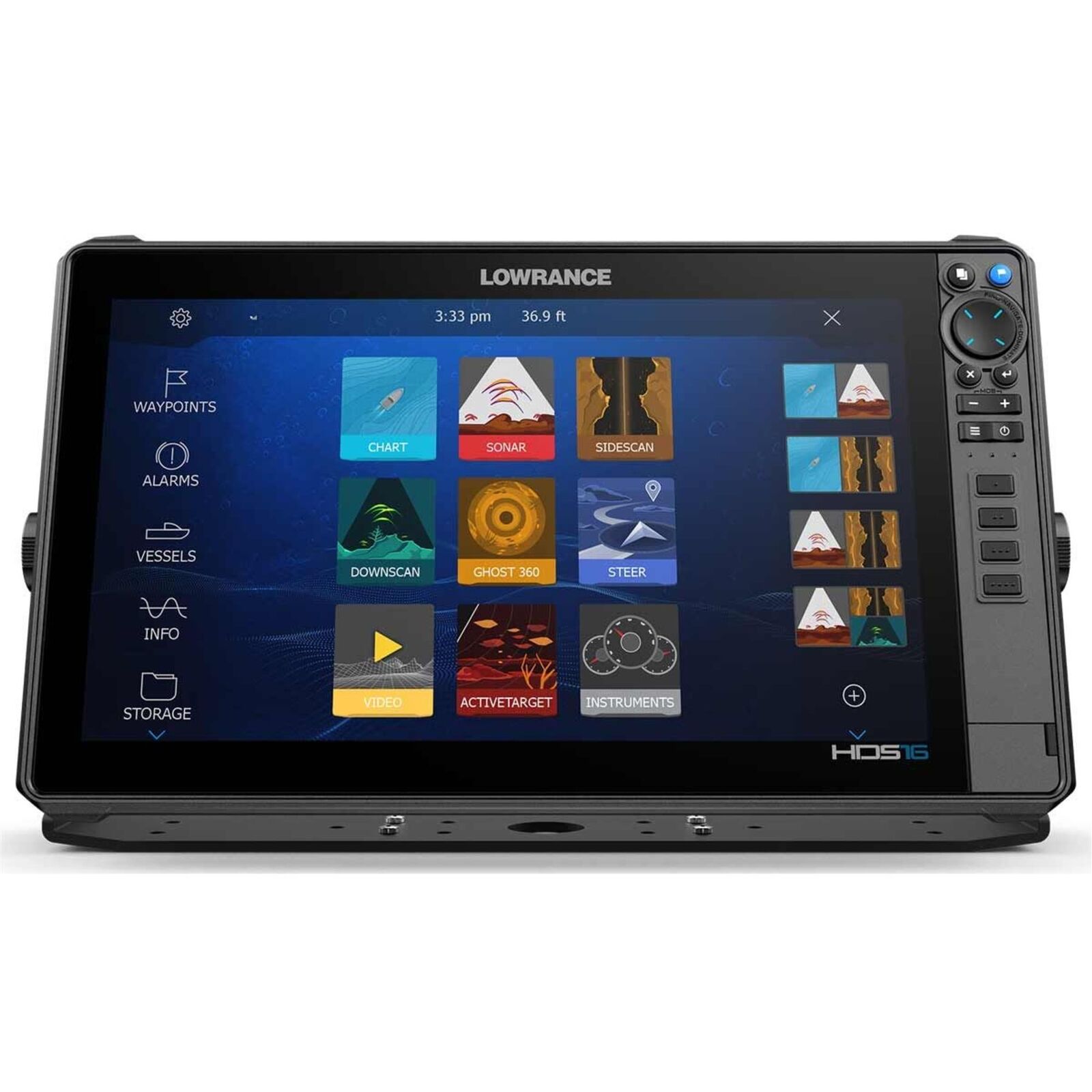

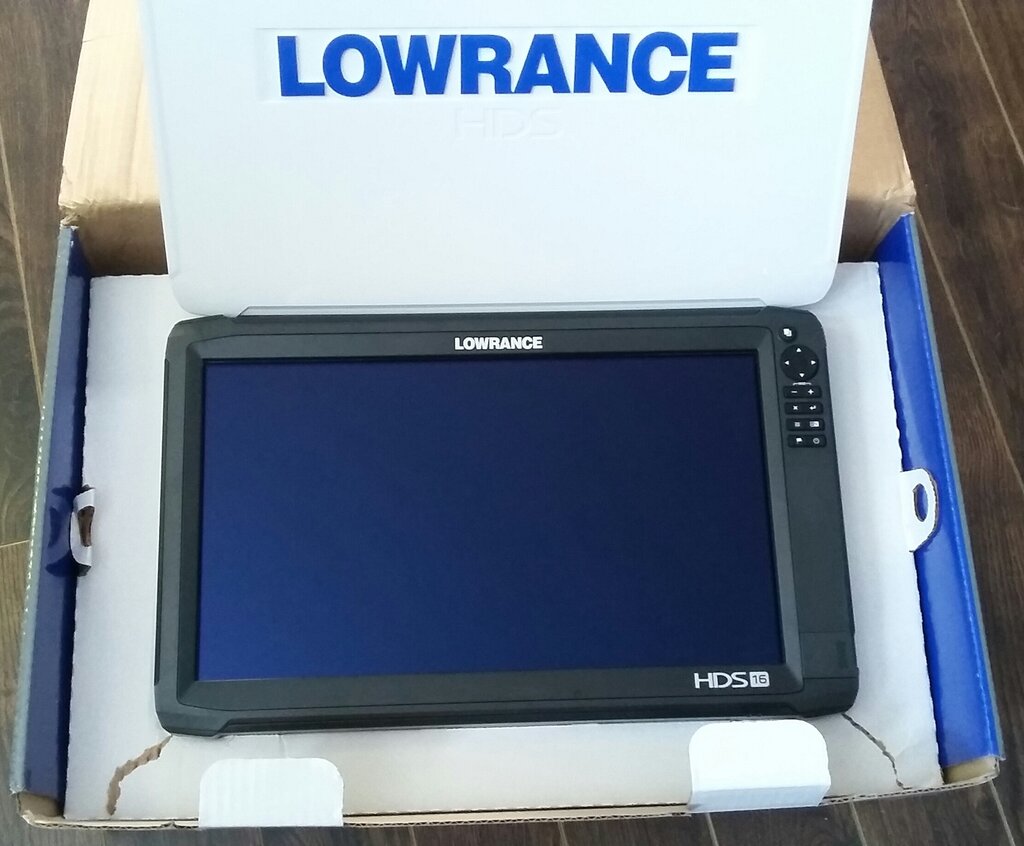

HDS-16 Carbon combines an ultra-clear SolarMAX™ HD display with a new dual core high-performance processer, leading-edge fishfinder technology dual channel CHIRP and dual network sounder using the latest advances in integrated wireless service tools. More agility, speed and brute power all in one easy-to-use multi-touch display. Comes with TotalScan Transducer.
General
Display Size |
15.6in (396mm) Diag. |
Display Type |
FULL HD color IPS TFT LCD |
Resolution |
1920H x 1080W |
Backlight |
Pure White LED |
Display Brightness |
> 1200 Nits |
Height |
10.15in (257.9mm) |
Width |
16.26in (413.0mm) |
Depth |
3.68in (93.47mm) |
Weight |
7.94lb (3.60kg) |
Environmental
Operating Temperature |
5°F to 131°F (-15°C to 55°C ) |
Waterproof |
IPX7 with card door closed |
DOC |
Part 15.103 FCC rules & CE RTTE directive 1999/5/EC |
Electrical
Current Draw |
MAX – 3.6 A @ 13.8 VDC with backlight on full |
Typical – 2.75 A @ 13.8 VDC
Operating Voltage |
12 VDC |
Supply Voltage |
10.8-17 VDC |
User Interface
Interface |
Full Multi-touch touchscreen and Keypad; 8-way directional keypad; ZOOM +/-, EXIT,ENTER,MENU,SWAP PANEL,WPT,LIGHT/POWER |
Standard Languages |
Afrikaans/Afrikaans, Danish/Dansk, German/Deutsch, English (US), English (UK), Spanish/Español, Finnish/Suomi, French/Français, Greek/Ελληνικά, Icelandic/íslenska, Italian/Italiano, Dutch/Nederlands, Norwegian/Norsk, Portugese (Brazil)/Português (BR), Portugese (Portugal)/Português (PT), Swedish/Svenska |
Chart Plotter Characteristics
Display Modes |
North up, Course up (COG), Heading up (heading with external heading sensor or COG) |
Built-in Cartography |
Insight USA (AMER models), Navionics basemap (AMER and ROW models) |
Add on Cartography |
Navico Insight HD, Navionics Platinum+/Platinum/Gold, Fishing HotSpots |
Alarms |
No GPS fix, Anchor, Low boat speed, XTE, Waypoint radius, Arrival |
Sonar Characteristics
Built-in CHIRP |
Yes |
Built-in Broadband |
Yes |
Multiple Network Sonar |
Yes |
Dual Channel CHIRP Sonar |
Yes |
Built-in StructureScan |
Yes |
Available Frequency |
83/200 kHz or 50/200 kHz (depending on Broadband transducer); 455/800 kHz for StructureScan |
Available CHIRP Frequencies |
High CHIRP, Medium CHIRP or Low CHIRP (depending on transducer) |
Power |
1kW capable depending on transducer |
Max Depth |
5000ft (1524m) *depending on transducer |
Alarms |
Depth, Fish I.D., Shallow |
Radar Charateristics
Radar Compatibility |
4G (Broadband), 3G (Broadband), TX06L-1 (6kW HD Digital) |
EBL/VRM |
2 user configurable |
Guard Zones |
2 user configurable |
Comms/Interface
NMEA0183 |
1 x RS422 port |
Supported baud rates |
1200, 2400, 4800 (Default), 9600, 19200, 38400, 57600, 115200 |
Ethernet |
2 Port |
NMEA 2000 |
1 Micro-C |
Video Input |
Yes with optional cable |
Data Card Slot |
2 micro SD cards up to 32GB |
