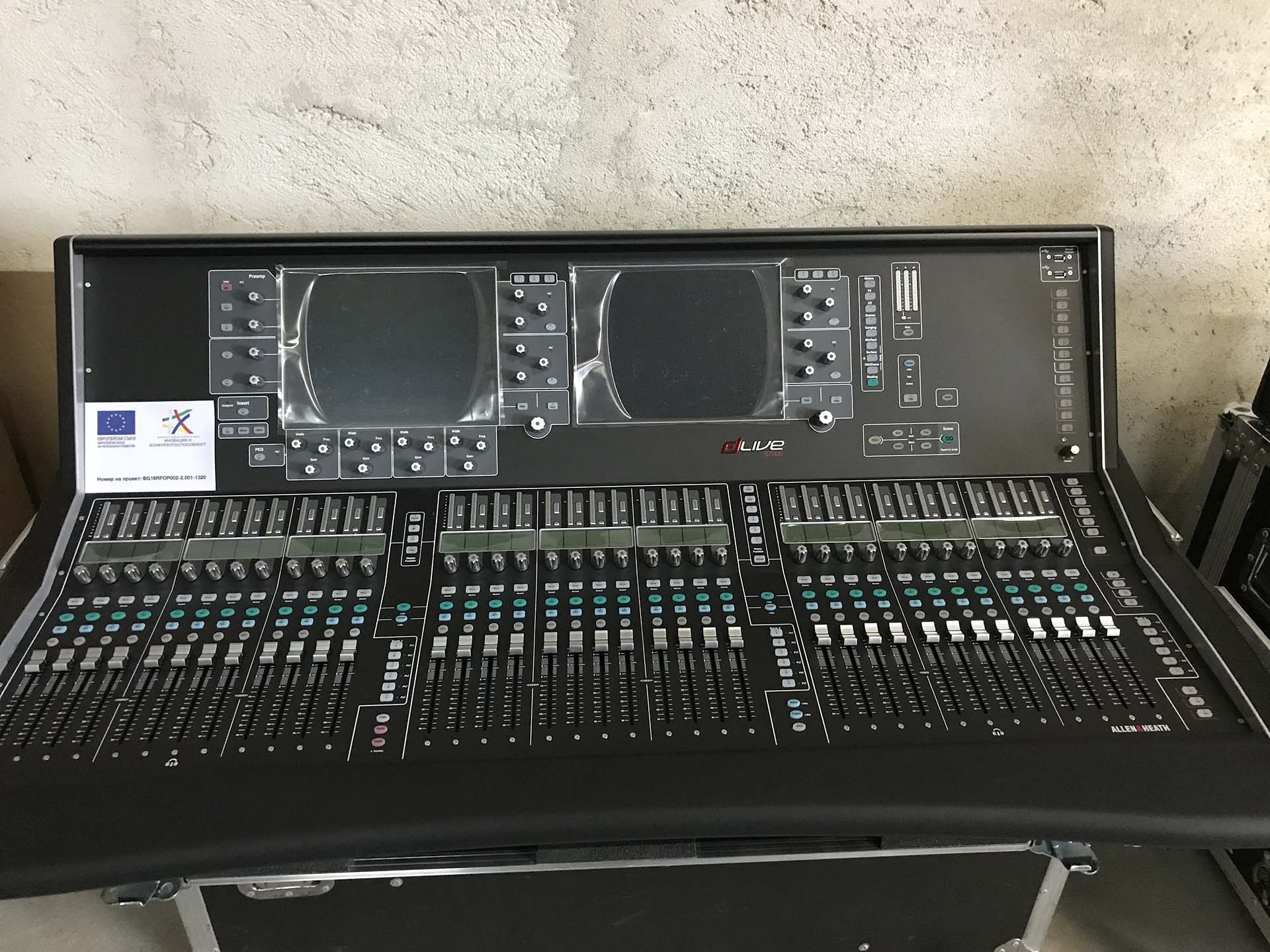

New Allen & Heath dLive S7000

$1,500.00

Category:

Description

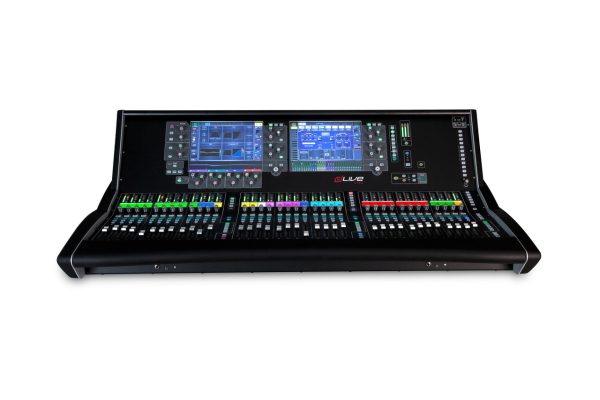

The S7000 is the largest control Surface in the dLive family, with a whopping 216 assignable fader strips. It features 36 faders over 6 layers, dual 12″ capacitive touchscreens and the innovative Harmony UI for the fastest workflow in the industry.

Features

  • 36 faders
  • Fully assignable layout – 216 fader strips
  • Harmony UI integrates screen and wrap-around controls
  • Dual 12” capacitive touchscreen
  • Gesture control – pinch, swipe, drag ‘n drop
  • Dedicated multi-mode EQ view
  • Configurable widget areas for Scenes, meters, FX and more
  • 3 pages of 6 assignable rotaries per screen
  • 26 assignable SoftKeys
  • Engineer’s Wedge and IEM fader strips
  • Comprehensive multipoint metering
  • Daylight visibility
  • USB stereo recording and playback
  • 8 XLR mic/line in, 8 XLR line out
  • 2 digital st AES3 in, 3 digital st AES3 out
  • Connection hub
  • Dual redundant GigaACE gigabit link to MixRack
  • 1x redundant DX link for I/O expansion
  • 2x I/O Ports – 128 ch 96 kHz each
  • 2x Network ports
  • Wordclock BNC I/O
  • Video output
  • Dual redundant, hot swappable power supply
  • 3 Year Warranty

Inputs

  • Mic/Line XLR Inputs Balanced XLR, +48V phantom power
  • Mic/Line Preamp Fully recallable
  • Input Sensitivity -60 to +15dBu
  • Analogue Gain +5 to +60dB, 1dB steps
  • Pad -20dB Active PAD
  • Maximum Input Level +30dBu (PAD in)
  • Input Impedance >4kΩ (Pad out), >10kΩ (Pad in)
  • Mic EIN -127dB with 150Ω source
  • Phantom Power indication Per socket, internal or external phantom power sensing, triggered at 24V
  • Digital Inputs AES3 2 Ch XLR, 2.5Vpp balanced terminated 110 Ω
    • SRC on each pair, range 32k – 192kHz, with bypass option

Outputs

  • Analogue XLR Outputs Balanced, Relay protected
  • Output Impedance <75Ω
  • Nominal Output +4dBu = 0dB meter reading
  • Maximum Output Level +22dBu
  • Residual Output Noise -92dBu (muted, 20-20kHz)
    • -90dBu (muted, 20-40kHz)
  • Digital Outputs AES3 2 Ch XLR, 2.5Vpp balanced terminated 110 Ω
    • 96kHz sampling rate, switchable to 48kHz, 44.1kHz

System

  • Measured balanced XLR in to XLR out, 20-20kHz, minimum Gain, Pad out
  • Dynamic Range 110dB
  • System Signal to Noise -92dB
  • Frequency Response 20Hz – 30kHz +0/-0.8dB
  • THD+N (analogue in to out) 0.0015% @ +16dBu output, 1kHz 0dB gain
  • Headroom +18dB
  • Internal operating Level 0dBu
  • dBFS Alignment +18dBu = 0dBFS (+22dBu at XLR output)
  • Meter Calibration 0dB meter = -18dBFS (+4dBu at XLR out)
  • Meter Peak indication -3dBFS (+19dBu at XLR out)
  • Sampling Rate 96kHz +/- 20 PPM
  • ADC 24-bit Delta-Sigma
  • DAC 24-bit Delta-Sigma
  • Latency 0.7 ms (MixRack XLR in to XLR out, Input to Mix)
    • + 5 samples, Surface to Mixrack (GigaACE hop)
    • + 8 samples, DX32 to Mixrack (DX hop)
  • Operating Temperature Range
  • Fitted with:
  • MPS16 V1 300w 0°C to 35°C (32°F to 95°F)
  • MPS16 V2 250w 0°C to 40°C (32°F to 104°F)
  • Mains Voltage Operating Range 100-240V AC, 50/60Hz
  • Mains Power Consumption
    • 300W max (MPS16 V1 300W)
    • 250W max (MPS16 V2 250W)

Dimensions and Weights

Width x Depth x Height x Weight

  • S7000
    • 1325 x 728 x 413 mm (52.2″x 28.7″x 16.3″)
    • 41kg (90lbs)
  • S7000 – boxed
    • 1485 x 920 x 560 mm (58.5″x 36.2″x 22″)
    • 56kg (123.5lbs)
